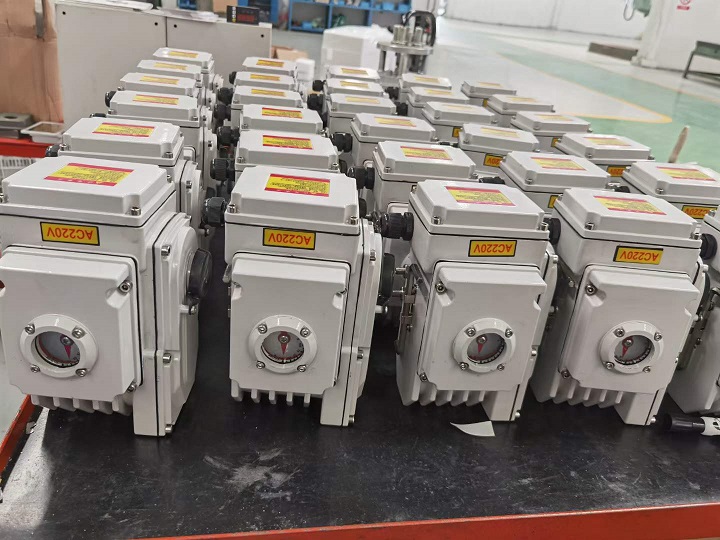

Electric actuator AND

Core Features and Technical Parameters
Driving mode:
Supports AC380V/220V or DC24V power supply, compatible with 4-20mA current signal control
Output torque range: 50N · m~4000N · m (depending on the model)
Applicable valve types:
Angular travel (0 °~270 °): Suitable for butterfly valves, ball valves, dampers, etc
Multi turn type: suitable for valves such as gate valves, globe valves, etc. that require rotation of more than 360 °
Protection level:
Standard IP67, optional IP68 (waterproof and dustproof design)
AND-16 AND-25
It adopts a concealed motor, aluminum alloy precision die-casting box or ABS engineering plastic box, achieving small and lightweight (weighing only 3-9kg). Multiple additional functions can be selected (heating dehumidifier, 4-20mA signal output, potentiometer).
