Groove filter

Brand：Pneumatic eccentric butterfly valve 型號：GL81H-16

Overview of Groove Filters
Groove filter is a pipeline filtration equipment connected by clamps (grooves), mainly used to remove solid particles and impurities in fluids, and protect downstream valves, pumps and other equipment. Its core features are fast installation, low flow resistance, and easy maintenance, widely used in fields such as fire protection, water supply and drainage, and petrochemicals.
Main types and characteristics

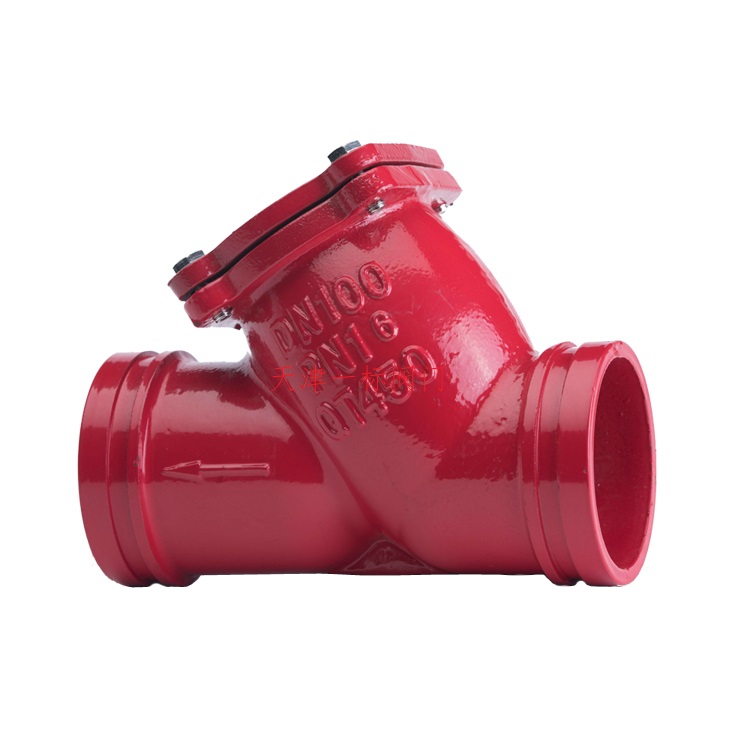

Y-shaped groove filter
Structure: Y-shaped channel design, removable and washable filter screen, suitable for media containing particles (such as sewage and industrial circulating water).
Advantages: The filtration accuracy is usually 0.5-2mm, supports online maintenance, and does not require dismantling of pipelines.
T-shaped groove filter
Technology: Multi stage filtration design, suitable for high impurity content scenarios (such as petroleum and chemical pipelines).
Material: The valve body is mostly made of ductile iron or stainless steel, with strong corrosion resistance.
Technical Specifications
Parameter Range/Description
Nominal diameter DN50~DN600 (partially extended to DN800)
Pressure rating PN10~PN16 (1.0~1.6MPa)
Applicable temperature -29 ℃~+300 ℃ (cast iron valve body)
Filtering accuracy 0.5~5mm (customizable)
Application field
Fire protection system: prevent nozzle blockage and ensure smooth water supply.
Industrial pipelines: front-end filtration of chemical, petroleum and other media.
Municipal water supply and drainage: interception of impurities in sewage and rainwater pipelines.
