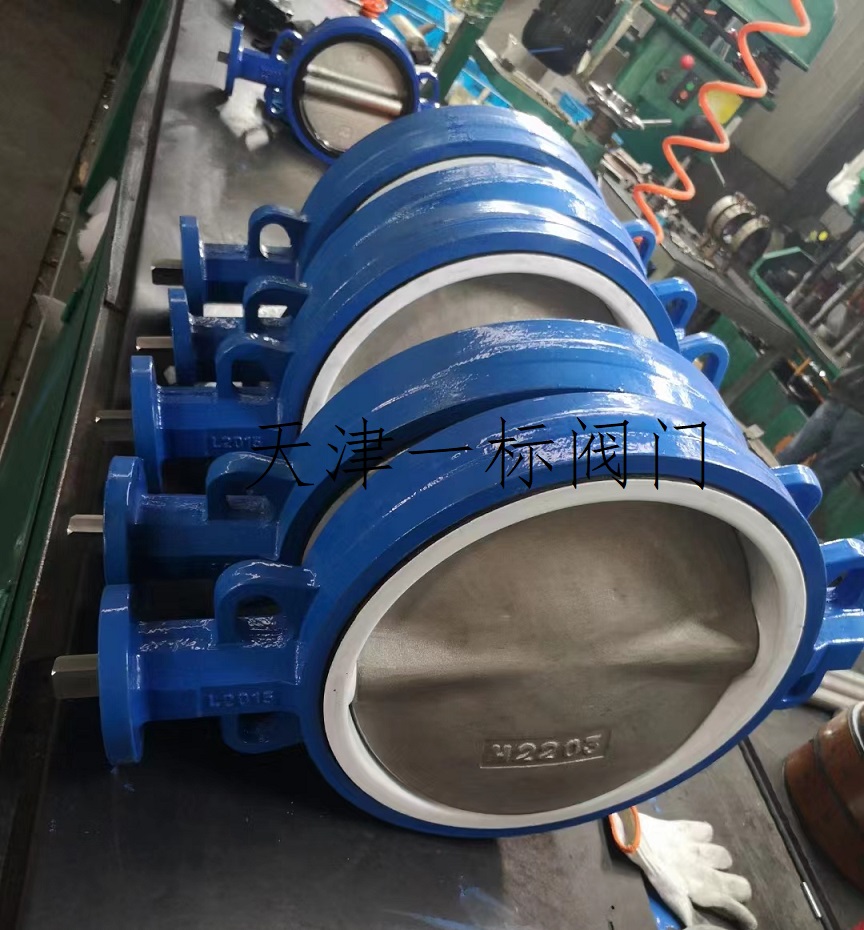

Lithium battery specific butterfly valve

鋰電專用蝶閥

Product model: LD671X-10
Product structure: Expansion midline type
Product grade: PN0.6~1.6Mpa
Product Material: QT450/304/316
Product specifications: DN50~600

The common plan for lithium-ion professional butterfly valves is to use gas source pressure to extend the valve seat towards the valve disc, in order to provide uniform pressure distribution for sealing at any time. Because during the opening and closing of the valve, the valve disc and seat only experience momentary contact, resulting in only minor collisions with the valve disc. On the contrary, for a typical butterfly valve, the friction between the valve disc and the valve seat will reduce the sealing performance and lifespan of the valve.

In practice, only a small amount of torque is required to open and close the lithium-ion professional butterfly valve. This allows for the use of smaller actuators, thereby reducing the cost of the entire valve system. According to practical comparative testing and on-site application records, the performance of lithium-ion occupational butterfly valves is superior to all valves. In fact, the lifespan of a lithium-ion professional butterfly valve can reach one to three million cycles, and it can even be used under severe wear and tear, which is unusual. For dry powders, it is suitable for lithium-ion professional butterfly valves.
The lithium battery occupational butterfly valve series is designed for harsh conditions. The valve seat is designed for heavy loads and higher operating pressures. The scale range of the valve is 2 "(50mm) to 24" (600mm), suitable for ANSI and metric flange specifications. The complete series of actuators, limit switches, and control devices can effectively meet different application requirements.
