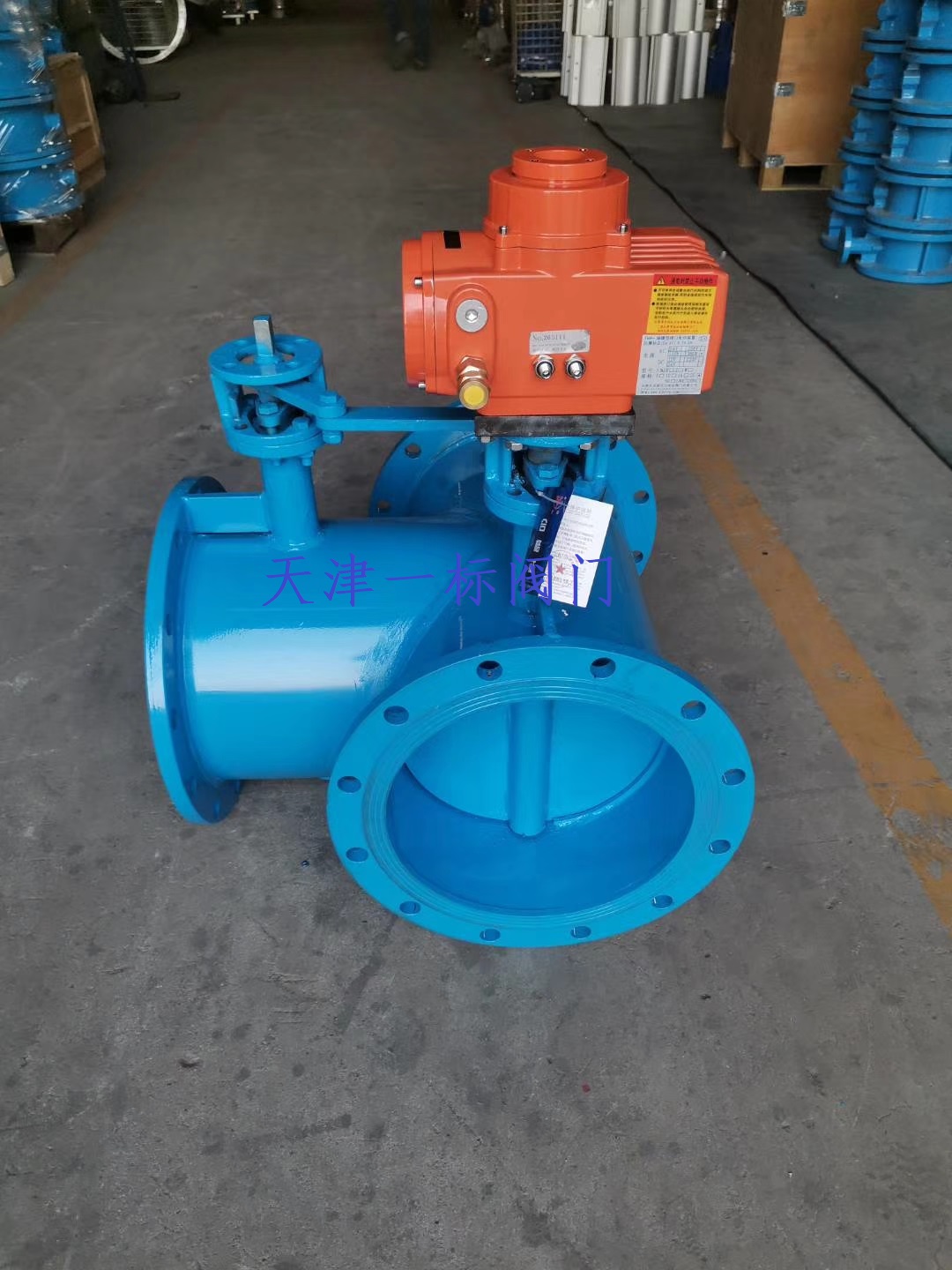

Pneumatic three-way butterfly valve

氣動(dòng)三通蝶閥 is a three-way control device that combines butterfly valve structure and pneumatic actuator, mainly used for fluid switching and regulation in the field of industrial automation. The core features and application overview are as follows:
1、 Structure type
Channel form
Similar to the structural differences of three-way ball valves, they may be divided into L-shaped and T-shaped:
L-type: achieve right angle switching of medium flow direction (such as connecting two vertical channels)
T-shaped: Supports flexible interconnection of three channels or individual closure of any channel
2、 Core Design
Control system
Adopting a dual solenoid valve and parallel cylinder design, coordinated control is achieved through the first and second gas supply branches. Even in the event of a power outage, production can still be quickly restored through manual paddles or spring reset mechanisms.
Executing Agency
Usually equipped with double acting or single acting pneumatic devices, the driving air source pressure range is 5-7 bar, and supports accessory expansion functions such as locators and limit switches.
3、 Technical advantages
Low voltage loss regulation
Butterfly valves can achieve sensitive flow control within the opening range of 15 °~70 °, and have low flow resistance when fully opened, making them suitable for large-diameter pipeline scenarios.
Emergency reliability
The dual cylinder and redundant air circuit design effectively avoid production interruptions caused by single solenoid valve failures, ensuring system stability.
Medium resistance characteristics
Butterfly movement has a self-cleaning effect and can be adapted to working conditions containing suspended particles or powdered media, depending on the sealing material (such as EPDM, PTFE) selected.
4、 Typical applications
Industrial automation: used for flow switching in material conveying systems and fluid distribution in production lines.
Pipe network regulation: achieving hydraulic balance in water treatment or heating systems to eliminate the problem of uneven heating and cooling.
Corrosive media: UPVC and CPVC valve bodies can withstand acid, alkali, and chemical fluids, commonly found in the food and semiconductor industries.

Technical Specifications
Valve body: ASTM A536 65-45-12, WCB, CF8M, UPVC, etc
Valve plate: ASTM A536 65-45-12, nylon coating, CF8, CF8M, UPVC, etc
Valve seat: EPDM, NBR, FRM, PTFE
Valve stem: SS420, SS431, 17-PH4
Valve body styles: clamp type, LT lug type, flange type
Nominal diameter: 2 "-80" (DN50mm - DN2000mm)
Flange adaptation: DIN PN10 PN16, JIS 5K 10K, ANSI CLASSS 150LB
Pneumatic actuator: double acting, single acting

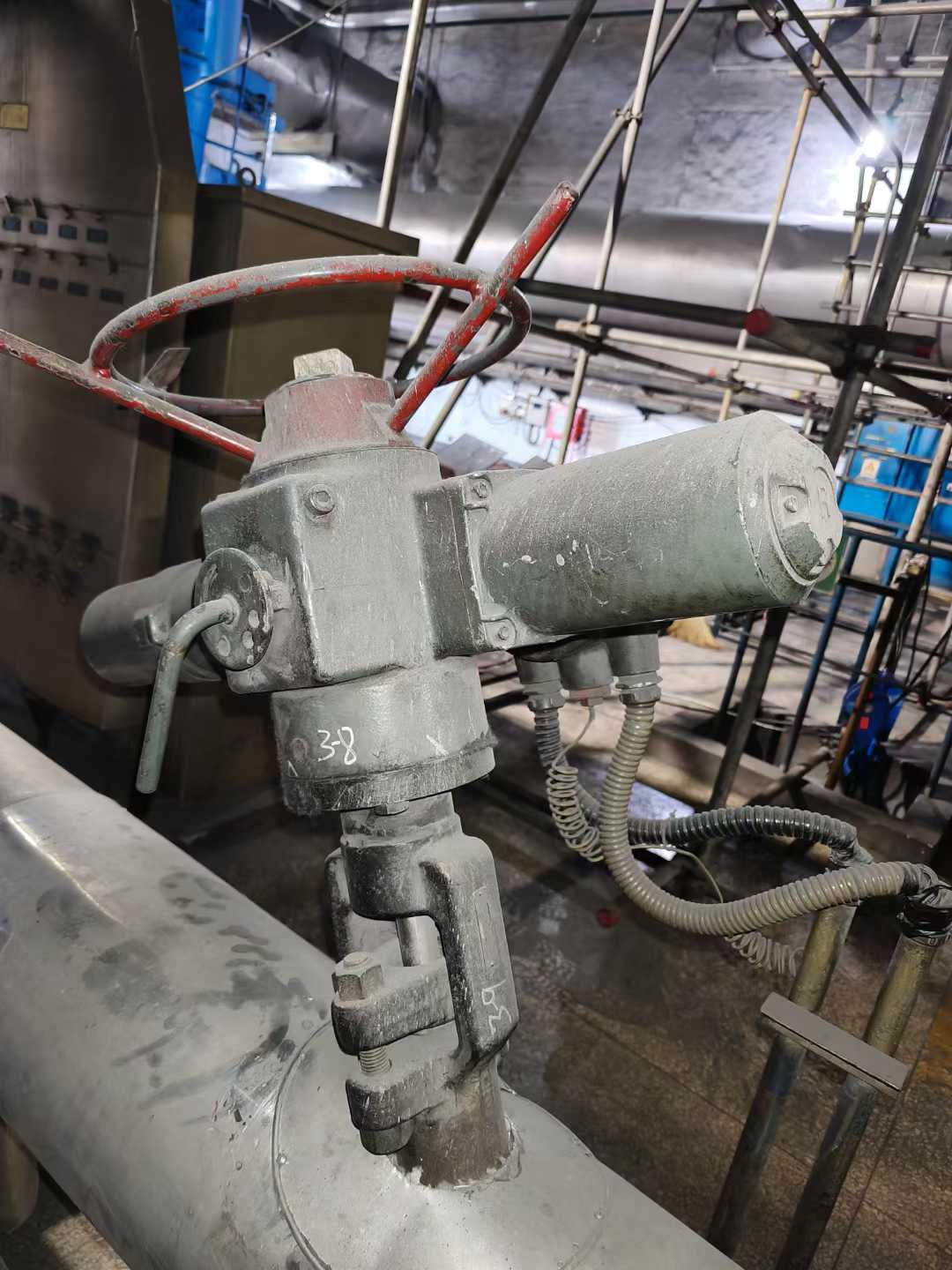

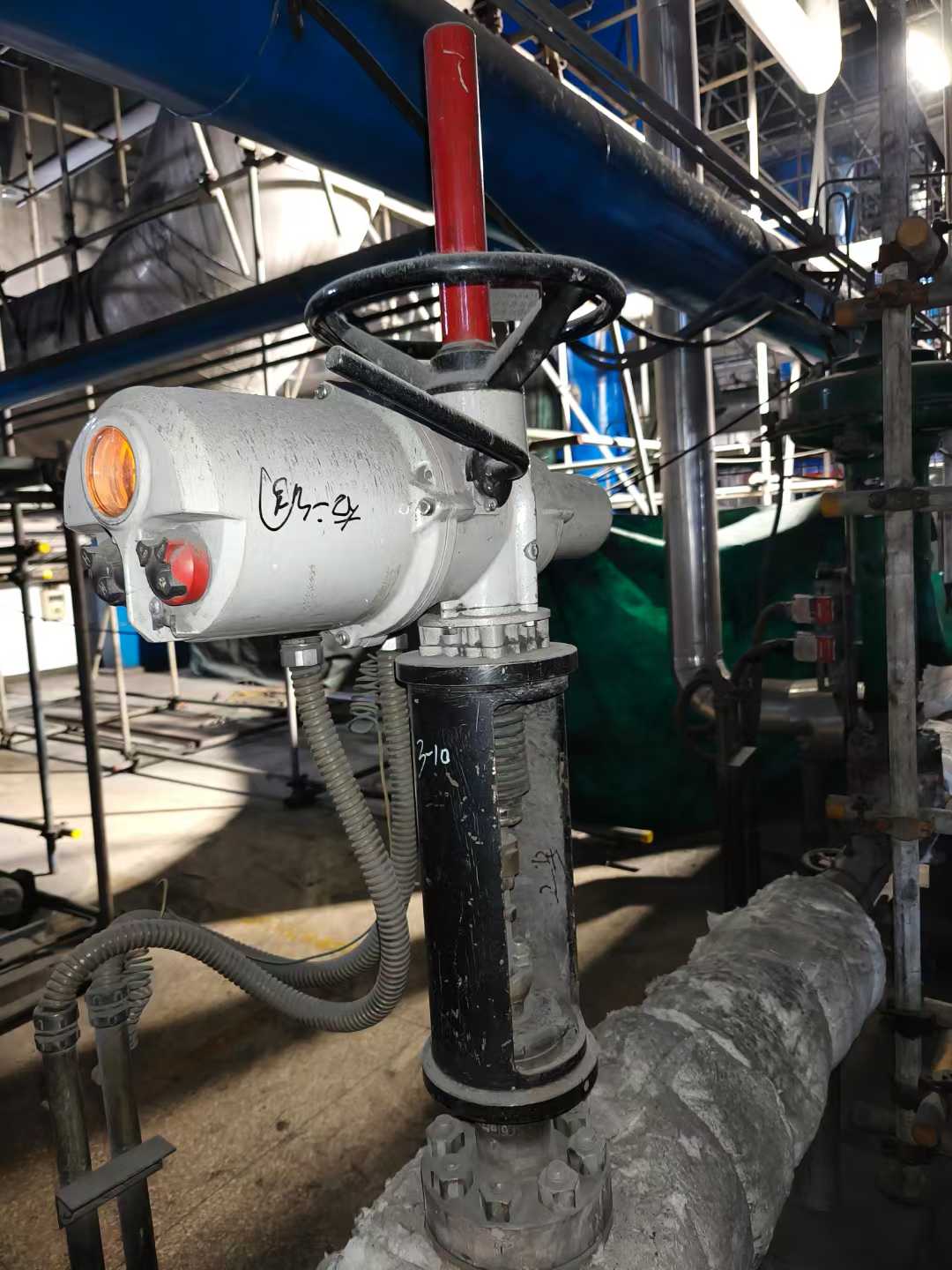

Electric actuators: ON-OFF type, adjustable type, explosion-proof, etc
