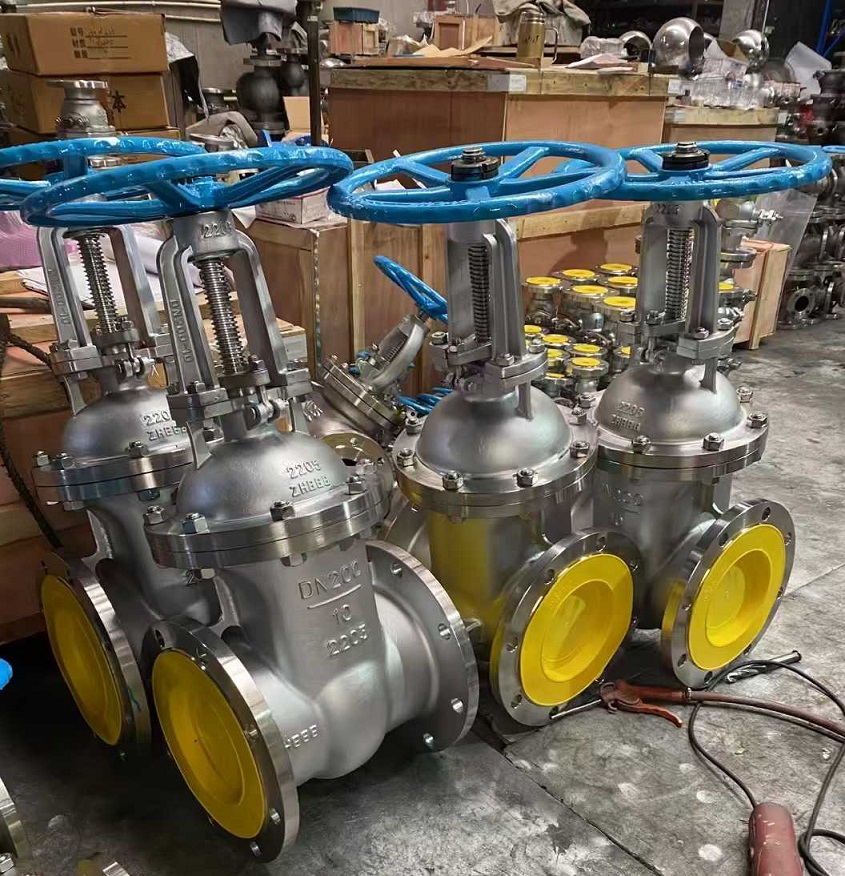

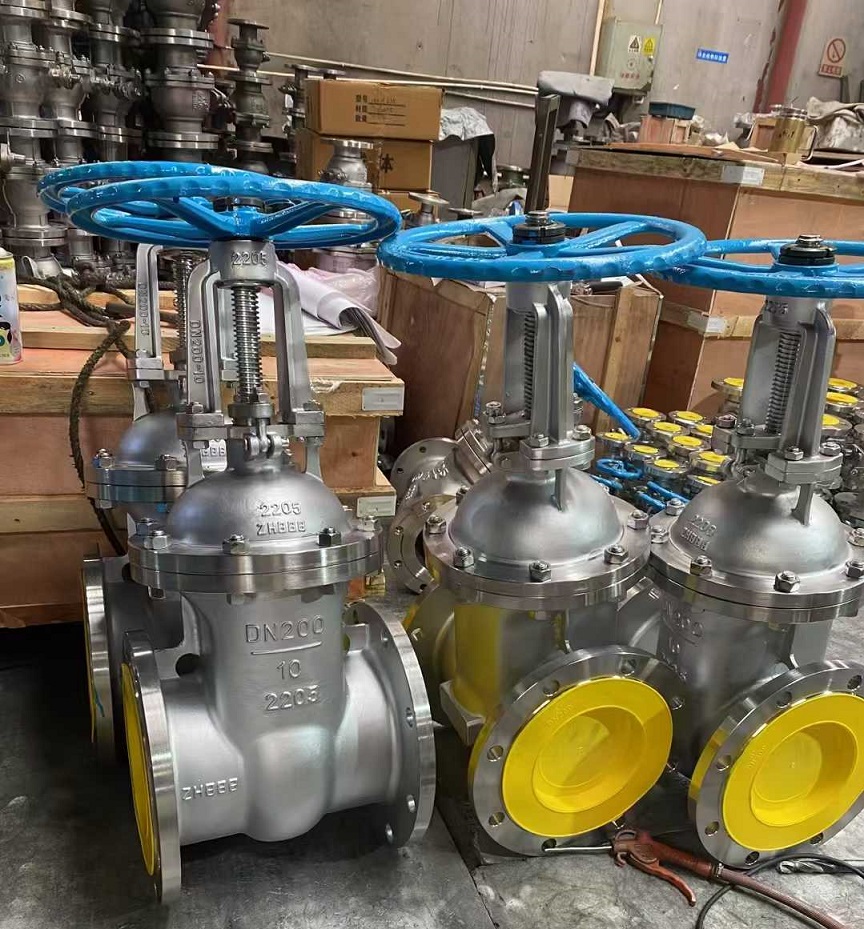

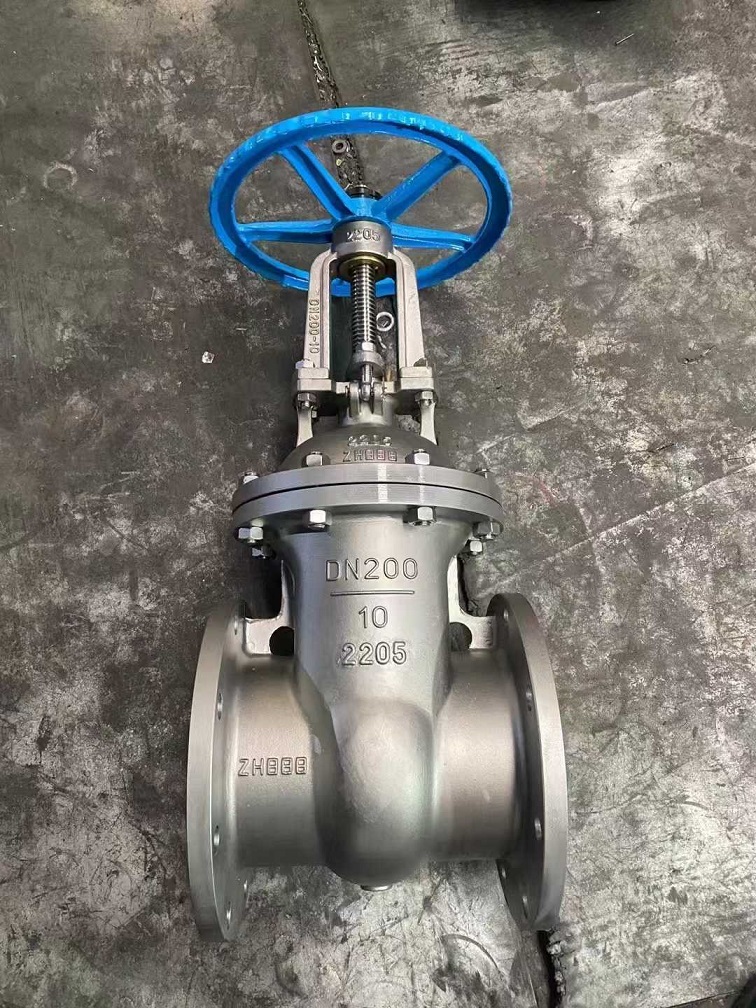

2205 gate valve

2205閘閥Technical Analysis
1、 Core material characteristics
2205 duplex stainless steel (UNS S32205/S31803) is composed of a dual phase structure of ferrite and austenite (≈ 50:50), containing 22% chromium, 5.3% nickel, 3.2% molybdenum, and 0.16% nitrogen12. Its core advantages include:


‌高強度耐蝕性‌：屈服強度≥450MPa（是304不銹鋼的2倍），抗氯離子腐蝕能力（Cl⁻≤10000ppm），適用于海水、含硫介質等高腐蝕環境‌。High strength corrosion resistance: yield strength ≥ 450MPa (twice that of 304 stainless steel), resistance to chloride ion corrosion (Cl ⁻ ≤ 10000ppm), suitable for high corrosion environments such as seawater and sulfur-containing media.
Fatigue wear resistance: Hardness ≥ 290HB, excellent anti erosion wear performance, especially suitable for media containing particles (such as slurry, pulp).
2、 Structural Design and Sealing Technology
Classification of gate structures
Bright stem gate valve: The valve stem is exposed, and the opening and closing status is intuitive, making it easy to lubricate and maintain. It is suitable for large-diameter pipelines (DN ≥ 100).
Hidden stem gate valve: The valve stem is built-in, with a constant height, saving installation space, and requires an opening indicator.
Elastic gate: with a slotted design in the middle, it can adaptively compensate for thermal deformation (deformation ≤ 0.1mm) to avoid jamming.
‌密封系統‌

‌雙向硬密封‌：密封面堆焊司太立合金（Stellite 6）或碳化鎢涂層（HRC55-60），耐高溫（≤300℃）及顆粒沖刷‌。
‌閥桿防泄漏‌：柔性石墨填料（耐溫260℃）或金屬波紋管（劇毒介質適用，泄漏率≤10⁻⁷ Pa·m3/s）。
三、關鍵技術參數
參數 指標范圍 適用場景
公稱通徑 DN15–DN1200 小型儀表至大型主管道
壓力等級 PN16–PN160 美標150LB–1500LB
適用溫度 -50℃~300℃ 硬密封結構耐高溫‌
連接方式 法蘭/對夾/焊接 法蘭式通用性強，焊接式耐高壓‌
四、行業應用場景
‌焦化與化工‌
荊門焦化裝置中，‌Z41Y-150LB-DN100‌型號用于焦炭塔底閥，耐受硫化氫腐蝕與160℃高溫，降低維護成本50%‌。
‌海洋工程‌
海水淡化高壓泵出口，抵抗氯離子腐蝕（Cl⁻≤35000ppm），壽命達普通閥門3倍‌。
‌造紙與環保‌
漂白工段含氯介質（pH 1-13），年腐蝕速率<0.02mm，優于316L不銹鋼。
五、選型與維護要點
‌選型建議‌：
高壓化工管線→固定球結構閘閥（防閥桿吹出）；
含顆粒介質→V型切口閘板防卡阻‌。
‌安裝維護‌：
水平安裝確保閘板受力均勻‌；

含結晶介質需定期沖洗閥腔，清除沉積物‌；

檢查閥桿倒密封結構，預防介質外漏。

注：2205閘閥通過雙相鋼材料與彈性密封設計，在腐蝕性、高溫高壓工況下實現高可靠性，選型需綜合介質特性與壓力等級匹配結構形式‌。

天津一標閥門生產2205球閥、2205蝶閥、2205截止閥、2205閘閥。
