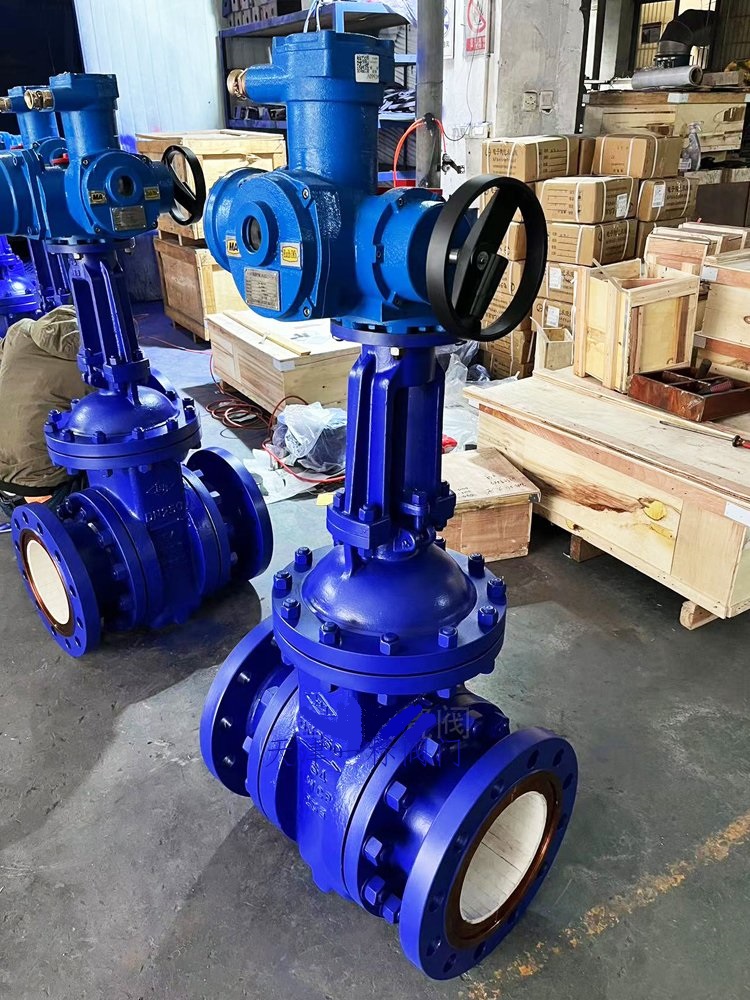

Electric ceramic slag discharge valve

Electric ceramic slag discharge valve is an industrial valve designed specifically for high wear and corrosive media. It is made of structural ceramic materials and has excellent wear resistance and corrosion resistance. It is suitable for diversion, merging or flow direction switching needs in the industrial field. Here is a summary of its key information:

1、 Product Overview
Electric ceramic slag discharge valves (such as PZ941TC, PZ941H-16, etc.) are mainly used in sewage systems, material transportation, and other scenarios. They can handle fluids containing particles or corrosive media, effectively extending their service life and reducing maintenance costs. Its core features include:
Material characteristics: High performance structural ceramics are used, with wear resistance more than 10 times that of ordinary metals.
Drive mode: Electric actuator control, supporting 4-20mA signal or switch adjustment.
2、 Technical parameters
Diameter range: DN50~DN1200, customizable for special needs.
Pressure rating: PN1.0~PN16.0MPa (high pressure models can reach PN64).
Applicable temperature: -20 ℃~550 ℃ (special design required for high temperature models).
Sealing design: Double sided ceramic seal, some models are equipped with a protective lip structure to prevent hard objects from cutting the sealing ring.
3、 Application Fields
Electricity/Mining: Ash slurry and slurry transportation.
Chemical/Environmental Protection: Corrosive slurries, wastewater treatment.
Paper industry: high concentration pulp, material water mixture.
