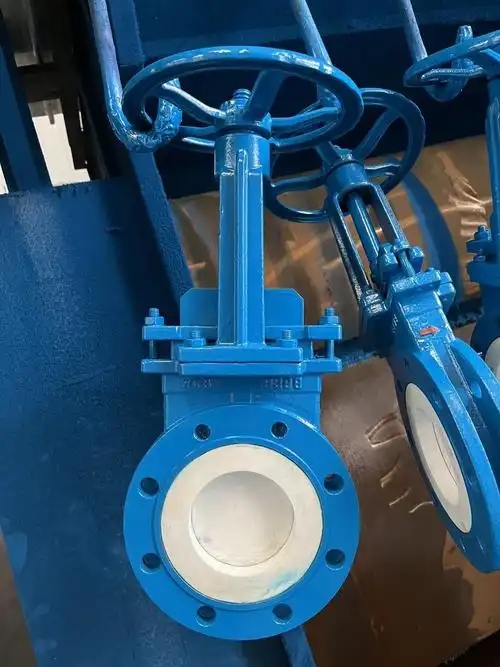

Ceramic knife gate valve

Brand：Yibiao 型號：Z71T-10

Ceramic Knife Gate Valve (CERATIC KNIFE TYPE GATE VALVE) is an industrial valve made of toughened engineering ceramics as the core material. It cuts off the medium through a blade shaped gate to achieve full open or full close function. It is designed for high wear and strong corrosive media and is widely used in mining, power, chemical, environmental protection and other fields.
Technical Specifications for Ceramic Knife Gate Valve
Nominal Diameter: DN50-600 2 "-248"
Pressure rating: 0.6MPa, 1.0MPa, 1.6MPa, ASME CLASS 150LB
Pressure test standard: DN50-200 16Bar DN250-DN400 10Bar DN450-600 6Bar
Suitable Temperature: -29 ℃ to+200 ℃
Leakage Level/Leakage Level: Ceramic Sealing V/V Level
Ceramic Knife Gate Valve Product Features
1. Ceramic knife gate valve is mainly composed of a valve body and a gate plate, with a compact design, small space occupation, and effective support for pipeline strength.
2. The valve body is made of ductile iron material and cast as a whole, which is more wear-resistant than ordinary knife gate valve bodies.
3. The surface of the gate is lined with a single-sided ceramic structure, which is resistant to erosion and not easily worn.
4. The inlet and outlet of the valve body, as well as the sealing surface, are lined with ceramics to enhance wear resistance and extend the service life of the valve.
5. The product is widely used in vulnerable working conditions such as mining, metallurgy, chemical engineering, and electricity.
